The Automatic Single Side Flat Bottle Sticker Labeling Machine serves pharmaceutical, food and beverage, cosmetic and chemical producers who need fast, precise labelling on flat, oval or square bottles. It aligns each container on a conveyor, senses its position and applies a single sticker on the front, back or side in one smooth action. Operators get uniform label placement, full batch traceability and minimal downtime for cleaning or adjustment.

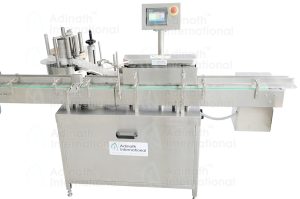

Automatic Single Side Flat Bottle Sticker Labeling Machine
Types of Bottle Labeling Machines
We are one of leading bottle labeling machine manufacturer in india. We provide below types of bottle sticker labeling machines:
-
Wrap Around Bottle Labeling Machine for jars, containers, tins, bottles etc.
-
Round Bottle Labeling Machine for glass, plastic, PET, aluminium & metal bottles.
-
Single Side Bottle Labeling Machine for oval, cylindrical, oblong, wide mouth & pharm round bottles.
-
High Speed Sticker Labeling Machine for water, milk, beer, wine, ink, cooking oil, syrup, medicine & shampoo bottles.
-
Double Side Sticker Labeling Machine for square and flat bottles of lube oil, grease, lubricant, engine oil etc. It is also called front & back sticker labeling machine.
-
Two Side Label Applicator uses for label on containers, jars & tins which uses double sided sticker labels.
-
Top Side Labeling Machine uses for labeling on bottle neck hence it is also called bottle neck labeler. It is also called as top & side labeling machine.
Durable, Robust Design & Versatile Labelling
The Automatic Single Side Flat Bottle Sticker Labeling Machine has a solid SS 304 frame with all product contact parts in SS 304, so you can spray it down or wipe it with sanitiser without any wear. A microprocessor‑driven dispenser measures label length and gap automatically, while a single‑point synchronised drive holds label, conveyor and top‑hold belt speeds in perfect step. Switch between front‑only, wrap‑around or dual‑side labelling in minutes with no need for extra parts. The optional wrap‑around kit lets you cover round containers from edge-to-edge, adding more flexibility to production.
How Does the Flat Bottle Sticker Labeling Machine Work
-
Product Infeed: Bottles or vials enter on a regulated conveyor and pass under a stabilising guide.
-
Sensor Detection: A built‑in optical eye spots each bottle’s edge and tells the label head exactly when to act.
-
Label Dispensing: The head peels and cuts each sticker to length, then hands it off smoothly to the roller.
-
Sticker Application: A gentle top‑hold belt grips the bottle and presses the label on cleanly, wrinkle‑free.
-
Discharge: Labelled bottles roll straight onto the next conveyor: no stops, no delays,
Key Features
-
No data entry needed: It sizes labels and gaps for you automatically, so you skip the setup.
-
Tool‑free change: Swap guides, sensors and belts in minutes—no tools needed.
-
High throughput: Labels up to 120 containers a minute.
-
All‑stainless build: SS 304 frame and SS 304 parts shrug off sanitising.
-
One‑motor sync: A single drive keeps everything moving in perfect step.
-
Top‑hold belt: It grips bottles gently to keep labels straight.
-
360° wrap: Add the wrap‑around kit and label any bottle all the way around.
-
Safety guards: Transparent shields keep staff safe and compliance simple.
-
Plug‑and‑play vision: Drop in a barcode scanner to catch errors as they happen.
-
PLC touchscreen HMI: Save 20 recipes, tweak settings and watch live status.
-
Energy‑efficient drive: The soft‑start motor eases in and cuts power use.
Technical Specification of Rotary Sticker Labeling Machine
| Model Number | AI‑BSLM 1S, the reliable workhorse of your line. |
| Label Height | Covers stickers from 8 mm to 180 mm. |
| Label Length | Cuts any length from 12 mm to the roll’s maximum. |
| Roll Capacity | Holds up to 300 mm diameter rolls on a 75 mm core. |
| Label Gap | Maintains a neat 3 mm space between stickers. |
| Product Size | Guides adjust to fit your exact bottle, jar or carton. |
| Power Supply | Runs on 220 V AC at 50/60 Hz, using just 0.75 kW. |
| Labelling Speed | Delivers up to 120 labels per minute, or 250 LPM in high‑speed mode. |
| Conveyor | Height adjusts between 830 mm and 875 mm. |
| Footprint | Measures 1.83 m by 0.91 m by 1.4 m—ideal for tight spaces. |
| Flow Direction | Bottles move left to right for seamless integration. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
The Automatic Single Side Flat Bottle Sticker Labeling Machine makes labelling feel almost effortless. It delivers sticker placement on every shape, swaps formats in a flash and slashes manual work. Its sturdy stainless‑steel frame and clever sensors can withstand heavy cleaning while keeping labels poised and precise at high speed. Slot this easy‑to‑use machine into your production line and watch output climb, waste reduced, and every pack leaving your factory properly labelled in a first‑class professional manner.
