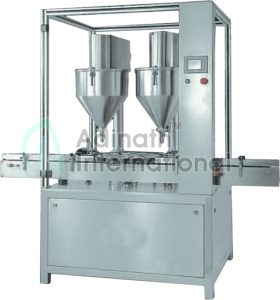

Automatic Double Head Auger Powder Filling Machine is uses for the filling of large volume powder into bottles. Machine is widely using in pharmaceutical, chemical, food and cosmetic industry for filling dry powder into bottles.
Automatic Auger Powder Filling Machine Video
Salient Features of Automatic Double Head Auger Powder Filling Machine
- Compact GMP model.
- All contact parts made from Stainless Steel 316 materials.
- Production output up to 50 bottles per minute.
- Filling powder in bulk with high filing accuracy of ±1.5% to ±2%, depending upon powder type and bulk density of powder.
- “No Bottle – No Filling” system.
- PLC based control mechanism.
- Linear design with inbuilt conveyor belt.
- Machine manufacture from high quality Stainless Steel for long life.
- Machine completely enclosed heavy steel structure body to avoid any vibration.
Process Operation of Automatic Double Head Auger Powder Filling Machine
The incoming dry bottle is fed through the Infeed Turn Table with suitably guided on the moving conveyor belt at the required speed for feeding. There is filling head mounted on machine top plate, when bottle reaches to the first filling station, it will be held by the bottle holder. Immediately it will be sensed by the bottle sensor as soon as it gets signals from sensor magnetic clutch starts to rotate which is mounted on auger shaft. It will fill the desired amount of powder to the bottle through auger, where rotation time is previously saved in PLC control. After filling bottle moves further for next operation. The main advantage of this machine is star wheel pick up system of bottle is directly connected with Auger rotation, so till bottle get filled with powder as per set value.
Duly filled bottles delivered on outfeed conveyor for capping operation.
Technical Specification of Automatic Double Head Auger Powder Filling Machine
|
Model |
ADF – 80 |
| Design |
Linear |
|
Movement |
Left to right |
| Concept |
PLC based panel |
|
Production Output |
Up to 50 bottles/minute (depends upon powder characteristics) |
| Filling Volume |
50 grams to 500 grams (Fill range depending upon Bottle Opening & Bulk density of powder) |
|
Filling Accuracy |
±1.5% to ±2% depending upon consisting and uniformity of bulk density of powder under Controlled level of Humidity |
| Hopper Capacity |
30 Liters approx. |
|
No. of Auger |
1 No. |
| No. of Funnel |
1 No. |
|
Bottle size |
5 gms to 100 gms |
| Machine Contact parts |
Stainless Steel |
|
Change parts |
· Star wheel & back guide
· Funnel & Auger |
| Power Supply |
0.5 H.P. |
|
Electrical Characteristics |
440 Volts, Three phase, 50 hertz |
| Overall Dimension |
2700mm (L) X 900mm (W) X 1700mm (H) approx. (Length include main machine + Turn Table) |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
