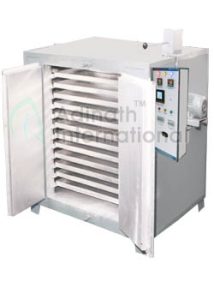

A powder dryer called a tray dryer is used in the pharmaceutical industry to dry a variety of powders. In addition to being widely used in the pharmaceutical industry, herbal, nutraceutical, ayurvedic, cosmetic, and chemical industries also use this equipment. Powder dries using the heated air that the built-in blower provides. The product on trays is heated to about 80 degrees Celsius by air that passes through heaters mounted on the equipment’s side walls. Equipment with a reputation for evenly heating powders throughout the operation is incredibly effective with a wide range of powder kinds. The main benefit of a powder drier for pharmaceuticals is equal heat dispersion. The method minimizes the possibility of the product’s qualities changing. a vast array of chemicals, food items, and raw materials that are maintained in powder form are used in the manufacturing of medicines. In addition to being very efficient, this herbal powder drier is also environmentally benign.
Salient Features of Tray Dryer
- Doors are provided with gaskets
- Stainless steel trays are placed on the movable trolleys
- Dynamically balanced axial flow type blower fans are provided for uniform air circulation in the drying chamber during process
- Machine is provided with control panel board with process timer
- Digital temperature controller cum indicator
- Standard & GMP models available with SS 304/ SS 316/ MS internals & externals
- Stainless steel tray in SS 304/ SS 316 quality
- All stainless steel 304 / 316/ 316L construction for pharmaceutical applications or external mild steel with SS internal contact parts
- Electric, steam, thermic fluid heating
- Control panel board with process timer (Circular chart recorder can be provided on demand at extra cost)
- Sturdy trolleys with castor wheels
- Air filter at inlet (Hepa filter can be provided on demand at extra cost)
- Easy accessibility of impellers for cleaning
- The exhaust duct, blower & air inlet filters can be custom built to keep out of the production area with suitable ducting
Process Operation of Powder Tray Dryer
On the one hand the machine’s design is robust while on the other its working principle is performance oriented. The evaporator of this machine absorbs heat from surrounding air through the compressor. High voltage gas enters the condenser and disperses heat into the drying room. The water vapor of materials is drawn due to hot air. This helps achieve the end purpose of drying in an efficient manner.
For more information, related to herbal powder dryer, feel free to get in touch with team Adinath International.
Technical Specification of Tray Dryer
| No. of Trays | 24 Trays | 48 Trays |
| Size of Tray | 16 inch (L) x 32 inch (W) x 1.25 inch (H) | |
| Power Load | 0.5 H.P. x 2 nos. | 1 H.P. x 2 nos. |
| No. of Door | One | One |
| No. of Blower | Two | Two |
| No. of Trolley | One | One |
| Heating Load at | ||
|
6 KW (6 x 1000 W) | 9 KW (9 x 1000 W) |
|
9 KW (9 x 1000 W) | 15 KW (15 x 1000 W) |
|
12 KW (12 x 1000 W) | 18 KW (18 x 1000 W) |
| Total Heater Load | 12 KW | 18 KW |
| Chamber Size | 33” (W) x 36” (D) x 36” (H) | 40” (W) x 36” (D) x 72” (H) |
| Overall Size | 76” (W) x 48” (D) x 54” (H) | 80” (W) x 48” (D) x 86” (H) |
| Power Voltage | 440 Volts, 3 Phase, 50 Hertz | |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
