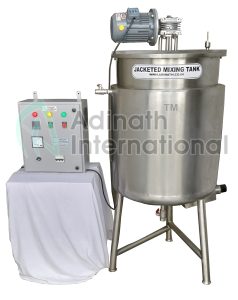

Pharmaceutical Process Vessel

The Pharmaceutical Process Vessel turns oral liquid production into a smooth, largely automated routine for pharmaceutical, nutraceutical, cosmetic and allied industries. You pour in water, sugars and active ingredients through hygienic ports, then set your mixing, heating and cooling profiles on a touchscreen. The vessel melts, mixes, filters and stores your liquid in a fully sealed system, cutting out manual transfers and slashing contamination risk. Because every batch follows the same settings and records each step, your team can spend less time wrestling hoses and drums and more time on quality checks and new formulations.

Pharmaceutical Process Vessel Video

Strong Build, Gentle Mixing and Leak‑Proof Transfers

The Pharmaceutical Process Vessel uses polished SS 304 with SS 316L contact parts, so you can run daily clean‑in‑place and steam‑in‑place cycles without a hint of rust. Limpet coils wrap each tank, delivering spot‑on heating or cooling, while a bottom‑entry propeller stirs gently to prevent shear damage and dead spots. Sealed tri‑clamp fittings and hygienic pumps or vacuum lines keep everything inside the loop, and the PLC touchscreen lets you set temperatures, mixing speeds and transfer steps. Live sensors then keep each batch exactly on track. Fast‑release panels and tool‑free parts make cleaning and maintenance a matter of minutes.

How Does the Pharmaceutical Process Vessel Work

• Loading: Operators add raw ingredients through a tri‑clamp port into the melting vessel.

• Heating: Limpet coils warm or cool the vessel to the exact set‑point.

• Mixing: A bottom‑entry propeller blends the batch smoothly without dead spots.

• Filtration: The liquid travels through an in‑line filter to remove solids.

• Transfer: Sealed pumps or vacuum lines move the product to storage or filler.

Key Features

• SS 316L contact surfaces and SS 304 frame for easy cleaning and durability.

• Closed‑loop design stops contamination and product exposure.

• Limpet coil jackets for precise heating and cooling control.

• Bottom‑entry propellers deliver uniform blends without shear.

• Tri‑clamp fittings and hygienic pumps for sealed transfers.

• PLC HMI stores recipes and logs batch data for audits.

• Quick‑release panels and tool‑free parts for rapid cleaning.

• Pressure‑rated to 1 bar for in‑place sterilisation.

• Vessel sizes from 50 L to 50,000 L to suit any scale.

• Optional inline homogeniser for ultra‑smooth suspensions.

Technical Specification of Pharmaceutical Process Vessel

• Construction: SS 304 frame; SS 316L contact parts; food‑grade gaskets.

• Capacity range: 50 L – 50000 L per vessel.

• Heating/Cooling: Steam and chilled‑water limpets; individual temperature probes.

• Mixing speed: 10 – 200 RPM variable propeller.

• Filtration: 50 µm pre‑filter; optional 1 µm final filter.

• Transfer method: Diaphragm pump or vacuum line with hygienic piping.

• Control system: Allen‑Bradley or Siemens PLC; colour touchscreen HMI; 21 CFR Part 11 ready.

• Pressure rating: Vacuum to 1 bar for sterilisation.

• Utilities: Steam, chilled water, compressed air and power to suit plant size.

• Compliance: cGMP and CE design; IQ/OQ documentation included.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

The Pharmaceutical Process Vessel gives you a turnkey solution for oral liquid manufacturing. Its stainless‑steel build and closed‑loop transfers guard every batch against contamination, while precise temperature control and gentle mixing ensure uniform quality. You can scale from R&D to full production by choosing vessel sizes up to 50,000 L, and the automated control system stores recipes and logs every step for easy audits. Quick‑release panels and tool‑free parts make cleaning and validation a matter of minutes only. You can switch between manual and fully automated modes to match your staffing and batch sizes. Engineered for strength and simplicity, it meets tough regulations and frees you to focus on creating outstanding products.
