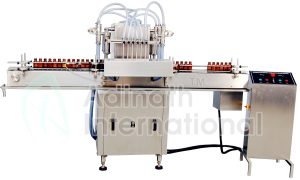

Automatic Six Head Volumetric Liquid Filling Machine

The Automatic Six Head Volumetric Liquid Filling Machine caters to pharmaceutical, food and beverage, cosmetic and chemical producers who need fast, accurate filling of free‑flowing liquids. You load bottles onto the slat conveyor, and six piston‑driven heads measure and pour each dose into varied-sized containers. This all‑in‑one machine combines speed and precision with full stainless‑steel hygiene, so operators can maintain batch integrity, reduce manual handling, and keep the production line running smoothly.

Automatic Six Head Volumetric Liquid Filling Machine Video

Built for Durability, High‑Speed Precision and Hygienic Design

The Automatic Six Head Volumetric Liquid Filling Machine is built on an SS 304 frame with SS 316L contact parts. It survives daily wash‑downs and harsh sanitisers without corrosion, thanks to its food‑grade finish and modular build. Six synchronised heads deliver the exact volume you set on the touchscreen, batch after batch, while a diving nozzle prevents foam and splash. Optional infeed and outfeed turntables match conveyor speeds for smooth transitions, and a free‑spinning bottle separator needs no air supply. Built‑in AC variable‑frequency drive and quick‑release guards let you change formats and clean in place in minutes, minimising downtime.

How Does the Volumetric Liquid Filling Machine Work

1. Container Infeed
   A stainless‑steel slat conveyor carries bottles under a twin‑stopper system that spaces them evenly.

2. Volume Measurement
   Six piston syringes draw and dispense the precise fill volume you programme on the HMI.

3. Foam‑Free Filling
   Diving nozzles fill from the bottom up, eliminating foam and spills in each container.

4. Capacitor
   Optional turntables at the infeed and outfeed points match speeds for seamless operation.

5. Vial Discharge

Filled bottles roll off the star wheel onto the outfeed conveyor, ready for capping or labelling without stopping.

Key Features

• No Bottle – No Fill System: Prevents needless filling when no container is present.

• SS 316L Contact Parts: High‑grade stainless steel lets you autoclave or sterilise without risk.

• SS 304 Frame: A tough, rust‑proof shell that handles daily cleaning with no fuss.

• Diving Nozzles: Fill from the bottom up to keep foam at bay and spills off the floor.

• High Fill Accuracy: Hitting within 1 % every time, even on tiny single‑dose runs.

• Automatic Infeed & Exit: Bottles glide in and out in sync, so your team doesn’t have to.

• Automatic Infeed & Exit: Synchronised feeds cut manual handling and speed up production.

• Minimal Changeover Time: Tool‑free change parts let you switch fill ranges or bottle sizes in minutes.

• Free‑Spinning Bottle Separator: Guides containers without compressed air, reducing maintenance.

• AC Variable‑Frequency Drive: Controls speed for any operation, from gentle to high throughput.

• Quick‑Release Guards: Remove panels and hopper in seconds for in‑place cleaning.

Technical Specification of Volumetric Liquid Filling Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

The Automatic Six Head Volumetric Liquid Filling Machine gives an accurate filling solution that can withstand harsh cleaning and runs around the clock. Its six‑head design and diving nozzles keep foam and waste to a minimum, while quick‑release guards and tool‑free changes let you switch batches almost instantly. Install this machine for reliable, high‑capacity filling with minimal rejects, so you meet demand, maintain quality and keep your team focused on what matters most.
