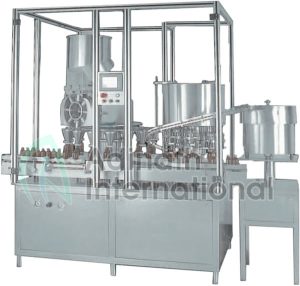

The Rotary Dry Syrup Powder Filling and Rubber Stoppering Machine gives pharmaceutical, nutraceutical, food and allied industries a reliable way to fill and seal dry syrup bottles. It ensures every bottle receives the right dose of powder, seats a rubber stopper tightly, and does it all with minimal handling or operator effort. Whether running paediatric antibiotic syrups, dietary supplements or other free‑flowing powders, this machine gives accurate, fast and hygienic filling with every batch.
Rotary Dry Syrup Powder Filling Machine Video
Reliable Performance, Precise Dosing, and Airtight Seals
The Rotary Dry Syrup Powder Filling and Rubber Stoppering Machine is built with a tough stainless steel frame and smooth SS 316L contact parts. It stands up to daily wash‑downs and strong sanitisers without rust or wear. Each powder wheel gives ±1% accuracy, so every bottle gets just the right amount. The vacuum-assisted rubber stoppering unit places and seats each stopper tightly, keeping the contents safe from moisture and air. Operators enjoy worry-free high output, smooth bottle travel and repeatable seals from batch to batch. Its simple-to-use touchscreen enables users to set filling weights, change speeds and save recipes for fast product changeovers.
How Does the Rotary Dry Syrup Powder Filling and Rubber Stoppering Machine Work
-
Bottle Infeed: Clean, empty bottles feed in from an input turntable, and these are then transferred onto the star wheel to calmly space out into the correct place.
-
Powder Filling: Powder is drawn from the hopper by an auger or twin powder wheel and discharged into each bottle in a predetermined amount.
-
Vibration and Settle: Containers pass over a slightly vibrating area, helping powder to settle inside.
-
Rubber Stoppers Feeding: Each rubber stopper is fed with a vibratory bowl or elevator feeder.
-
Bottle Outfeed: Stopped bottles are automatically fed onto the discharge conveyor for capping, labelling or packaging.
Key Features
-
Equipped with a stainless steel frame and SS 316L contact parts, which are corrosion-free and easy to clean.
-
The rotary star wheel is designed to be operated smoothly, and it can easily control the bottle during high-speed operations.
-
Powder wheels or augers fill each bottle with ±1% of the set value.
-
Vacuum stoppering provides a close-up, sure seal for every sample.
-
Touchscreen HMI enables recipe storage, live status and alarm logging.
-
Change parts do not require tools for quick conversion from bottle to stopper size.
-
Safety interlocks stop the line if a bottle or a closure is not in place.
-
Fast-release guards allow for easy access to clean, repair or exchange.
-
Output capacity up to 120 bottles per minute (model dependent).
-
Low noise and vibration for a comfortable workspace.
Technical Specification of Dry Syrup Powder Filling Machine
|
Models |
AI-DPM 16 |
| Construction |
SS 304 frame, SS 316L product contact parts. |
|
Bottle Size |
30 ml to 250ml (custom options available). |
| Output |
Up to 120 bottles per minute. |
|
Fill accuracy |
±1% |
| Stopper size |
Suits standard dry syrup rubber stoppers. |
|
Hopper volume |
25 litres (standard) |
| Power |
2 kW, 415 V, 3-phase, 50 Hz. |
|
Footprint |
1800 mm (L) x 1100 mm (W) x 1700 mm (H). |
| Air Requirement |
4–6 kg/cm², clean and dry air. |
|
Compliance |
cGMP, CE and FDA compliant. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
The Rotary Dry Syrup Powder Filling and Rubber Stoppering Machine is an easy and efficient unit for packing dry syrup powder in bottles. With accurate fill volumes, vacuum stoppering and quick-change parts that inspire quick cleaning cycles, you’ll keep waste to a minimum, errors at bay. This machine is your confident and constant working unit, ensuring a continuous production flow.
