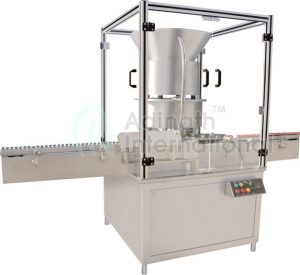

Automatic Six Head Vial Cap Sealing Machine

The Automatic Six Head Vial Cap Sealing Machine equips pharmaceutical, nutraceutical, cosmetic and chemical manufacturers with rapid, reliable cap sealing for high‑value products. It seals plain or flip‑off aluminium caps onto moulded or tubular glass vials, PP, PET or HDPE containers, depending on vial dimensions and cap size. It combines inline feeding, orientation and six‑station sealing, thus reducing manual handling. It also ensures every vial locks tight before moving on to labelling or packing, safeguarding product sterility and batch integrity.

Automatic Six Head Vial Cap Sealing Machine Video

Built to Last, High-Speed Precision & Hygienic Seal

The Automatic Six Head Vial Cap Sealing Machine is built on an SS304 steel frame with SS316L contact parts. This allows it to withstand daily wash‑downs and harsh cleaning agents without corrosion. Its six servo‑driven sealing heads deliver the exact pressure and torque you set on the touchscreen HMI, producing uniform, leak‑proof caps every cycle. A vibratory bowl feeder synchronises cap supply to your line speed, while quick‑release guards and a removable hopper let you clean or swap formats in minutes. The result is maximum uptime, minimal rejects and seamless compliance with GMP standards.

How It Works

1. Vial Infeed & Positioning
   Operators load empty vials onto the conveyor. An infeed worm spaces them, and a star wheel indexes each vial under one of the six sealing heads.

2. Cap Feeding & Alignment
   Caps tumble in a bowl feeder or endless reel magazine, travel up a chute and align precisely for sealing.

3. Sealing Process
   The turret rotates each vial under a head. That head descends, applies calibrated pressure and torque, then rises—sealing in one smooth action.

4. Inspection & Rejection
   Real‑time sensors monitor each seal’s torque and alignment; any vial out of spec is automatically ejected to a reject bin.

5. Vial Discharge

Sealed vials exit the star wheel onto the outfeed conveyor, ready for the next packaging stage; no line stops required.

Key Features

• Zero‑Waste Interlocks: Pauses on missing vials or caps, preventing waste and spills.

• All‑Stainless Build: SS 304 frame and SS 316L parts resist corrosion and stand up to sanitisation cycles.

• Six‑Head Sealing: Six independent heads work in parallel, driving throughput to 180 vials per minute.

• Exact Torque Control: Each head delivers the same preset force within 0.01 Nm for leak‑proof seals.

• Adaptive Cap Feeder: Variable‑speed bowl or reel feeder matches cap delivery to line speed.

• Rapid Format Change: Tool‑free change parts let you switch vial and cap sizes in under five minutes.

• In‑Place Cleaning: Quick‑release guards and dismantlable hopper support fast cleaning and sterilisation.

• Touchscreen HMI: Store 20 sealing recipes, adjust torque, speed and view machine status.

• Remote Diagnostics: Optional Ethernet link enables live support and remote updates.

Technical Specification of Six Head Vial Cap Sealing Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

The Automatic Six Head Vial Cap Sealing Machine brings speed, precision and peace of mind to your sealing line. Its stainless‑steel core, six‑head synchronisation and exact torque control ensure every vial seals perfectly, while its tool‑free change parts and in‑place cleaning keep downtime to a minimum. Add this turnkey solution to your production for uniform, leak‑proof seals, reduced waste and total confidence in every batch.
