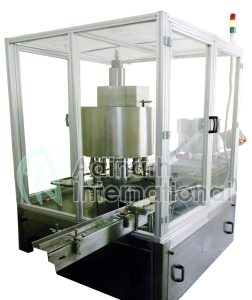

Automatic Six Head Bottle Screw Capping Machine

The Automatic Six Head Bottle Screw Capping Machine brings high‑speed, precise screw capping to pharmaceutical, food and beverage, cosmetic, pesticide and chemical lines. It handles round or shaped bottles, sealing each with one of its six heads. Operators can load empty containers onto the infeed conveyor and the machine spaces. It then orients and tightens each cap in a single, smooth cycle. The result is consistent, tamper‑evident seals, minimal manual work and easy integration into existing cGMP‑rated conveyors.

Built for Durability, Speed and Accuracy

The Automatic Six Head Bottle Screw Capping Machine is built on an SS304 frame with SS 316L contact parts, so it thrives under daily wash‑downs and strong cleaning agents without wear. Six servo‑driven heads deliver the exact torque as selected on the touchscreen HMI, ensuring every seal is uniform and leak-proof. An orientation or vibratory bowl feeder feeds caps continuously at a set pace, syncing perfectly with the rotating turret. Quick‑release safety guards and a removable hopper allow users to sterilise in place, and change-parts can be swapped between bottle formats in minutes.

How Does the Bottle Screw Capping Machine Work

1. Bottle Infeed: You place bottles on the conveyor; an infeed worm spaces them, and a star wheel indexes each beneath its head.

2. Cap Feeding: Caps tumble in the feeder, rise up the chute and line up for placement.

3. Capping Sequence: The turret rotates bottles under each head in turn; the head lowers, grips and twists to the pre‑set torque.

4. Error Prevention: If a bottle or cap is absent, the machine pauses automatically, so you do not waste parts.

5. Discharge: Capped bottles roll onto the outfeed conveyor, ready for labelling or packing without stopping the line.

Key Features

• No Bottle–No Cap / No Cap–Machine Stop: The line stops if it senses missing bottles or caps.

• SS 304 Frame & SS 316L Parts: Resists corrosion, meets GMP and FDA hygiene norms.

• Six‑Head Servo Capping: Caps six bottles in parallel, boosting throughput to 120 bpm.

• Uniform Torque Control: Each head delivers consistent force within 0.01 Nm to prevent leaks or over‑tightening.

• Variable Speed Cap Feeder: Adjusts feed rate to match conveyor speed and cap morphology.

• Single Drive Synchronisation: One motor powers the conveyor, the star wheel and the turret in perfect harmony.

• Overload Clutch: Heads slip on jams to avoid bottle breakage and equipment damage.

• Tool‑Free Change Parts: Swap guides, chutes and head heights in under five minutes.

• Easy‑Clean Design: Quick‑release guards and a dismantlable hopper support fast cleaning.

• Touchscreen HMI: Store up to 20 capping recipes, monitor torque, speed and machine status.

• Remote Support Ready: Optional Ethernet interface allows live diagnostics and recipe updates.

Technical Specification of Bottle ROPP Capping Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

The Automatic Six Head Bottle Screw Capping Machine turns capping into a smooth, reliable process. Its robust stainless‑steel chassis and six servo‑driven heads ensure every seal is leak‑proof and tamper‑evident, even at high speed. Change bottle formats in minutes and clean using its tool‑free guards and a removable hopper. Intelligent sensors catch missing bottles or caps before they become waste. The result is a steady, efficient line, minimal rejects and total confidence in every batch.
