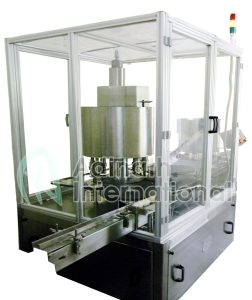

Automatic Six Head Bottle ROPP Capping Machine

The Automatic Six Head Bottle ROPP Capping Machine delivers rapid, reliable sealing of roll‑on‑pilfer‑proof caps to glass, plastic, PET, LDPE and HDPE bottles. It is designed for pharmaceutical, food and beverage, pesticide, cosmetic and chemical producers. It can handle round or shaped containers. Operators feed empty bottles onto the infeed conveyor, and six synchronised heads orient, seat and torque each cap in a single, smooth operation. This machine helps reduce manual handling, achieve tamper‑evident closures and maintain strict hygiene and quality standards.

Robust Construction, High Throughput and Precision Torque

The Automatic Six Head Bottle ROPP Capping Machine is built on a mild‑steel frame clad in SS 304 with SS 316L contact parts, shrugging off daily wash‑downs and strong sanitisers. Six servo heads tighten each cap to the exact torque you select on the touch‑screen, while caps glide smoothly through the turret. Tool‑free safety guards and a fully removable hopper let you clean or swap bottle formats in minutes, giving you an all‑in‑one system that keeps your line flowing, cuts rejects and maximises uptime.

How Does the Bottle ROPP Capping Machine Work

1. Bottle Infeed: Load bottles onto the conveyor; the worm and star wheel then position them under each of the six heads.

2. Cap Feeding: Caps tumble and move up the chute, ready to drop perfectly onto each bottle.

3. Capping Sequence: The turret swings bottles under a head, which then lowers and twists each cap to your preset torque.

4. Error Prevention: If a bottle or cap is missing, the machine pauses automatically; no wasted caps and spills.

5. Discharge: Once capped, bottles roll straight onto the outfeed conveyor; no stops.

Key Features

• Zero‑Waste Interlocks: The line stops if it spots a missing bottle or cap, saving time and product.

• Strong Stainless Built: SS 304 frame and SS 316L parts shrug off daily wash‑downs and sanitisation.

• Six Heads in Sync: Six cappers work together to seal up to 120 bottles a minute.

• Uniform Torque Every Time: Each head twists with the same force, batch after batch.

• Adaptive Cap Feeder: Dial the feed speed to match your line pace instantly.

• Easy‑Clean Design: Safety guards pop off tool‑free for a quick, thorough wash.

• Overload Clutch: Slips on jams to avoid bottle breakage and safeguard the capping head.

• Tool‑Free Change Parts: Swap guides, chutes and head heights in under five minutes.

• Touchscreen Control: Store up to 20 recipes, tweak settings in seconds and watch live status.

• Remote Diagnostics: Plug in to troubleshoot or update recipes from your desk.

• Audit‑Ready: Meets cGMP and CE rules, with IQ/OQ paperwork at the ready.

• Custom Extras: Add CIP kits, extra torque monitoring or vision inspection to suit your needs.

Technical Specification of Bottle ROPP Capping Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

The Automatic Six Head Bottle ROPP Capping Machine brings speed, precision and peace of mind to your line. Its stainless‑steel core, six‑head synchronisation and smart safety features cut rejects and downtime, while tool‑free parts and remote support keep you running around the clock. Plug it in, set your torque and let it deliver perfect, tamper‑evident seals with every bottle.
