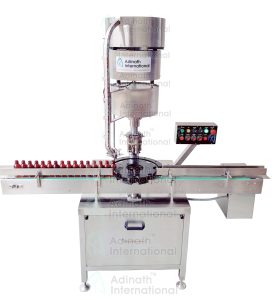

Automatic Single Head Bottle Screw Capping Machine

The Automatic Single Head Bottle Screw Capping Machine serves pharmaceutical, food and beverage, cosmetic, pesticide, chemical, liquor and other packaging lines. It unscrambles bottles, feeds aluminium or plastic screw caps from an orientation bowl, and applies each cap at up to 40 bottles per minute. What the user gets is uniform, leak‑proof seals, fewer manual tweaks and a smooth fit into existing conveyors. The compact, stainless‑steel unit withstands daily cleaning and keeps your production line moving, so operators spend time on quality, not on capping.

Automatic Single Head Bottle Screw Capping Machine Video

Robust Construction, Accurate Sealing and Effortless Operation

Built on an MS frame clad in SS 304 and fitted with SS 316L contact parts, this Automatic Single Head Bottle Screw Capping Machine can withstand wash‑downs and harsh sanitisers. Its orientation‑type cap feeder runs at variable speed to match your line, while a single servo head delivers the exact torque you set: every cap tightens to the same level, batch after batch. Quick‑release guards and a fully dismantlable hopper make cleaning and format changes a breeze, cutting downtime and ensuring sterile, repeatable performance. An intuitive touchscreen stores multiple recipes and warns you of any faults.

How Does the Single Head Bottle Capping Machine Work

1. Bottle Infeed: Bottles roll in on the conveyor, pass an infeed worm that spaces them, then drop into a star‑wheel for perfect alignment under the cap head.

2. Cap Orientation: Caps tumble in a stainless‑steel bowl or optional elevator feeder, then travel up a chute where guides stand them upright.

3. Capping Action: The single head lowers, engages the cap threads and spins to your preset torque—no loose or over‑tight closures.

4. Safety Clutch: If a cap jams, the overload clutch slips, protecting bottles from breakage and the head from damage.

5. Bottle Discharge: Sealed bottles exit the star‑wheel onto the out‑feed conveyor, ready for labelling or packing without interrupting production.

Key Features

• No Bottle – No Cap System: Machine stops if bottles run out, saving caps.

• No Cap – Machine Stop: Prevents empty runs and spills.

• SS 304 Frame & SS 316L Parts: Resists corrosion, meets GMP and FDA hygiene norms.

• Variable‑Speed Cap Feeder: Matches cap feed rate to line speed.

• Dismountable Hopper: Removes for deep cleaning in seconds.

• Single Drive Synchronisation: One motor runs the conveyor and the star wheel in sync.

• Quick Format Change: Swap change parts to handle bottle diameters from 24 mm to 85 mm in minutes.

• Safety Clutch: Prevents bottle breakage on jams.

Technical Specification of Single Head Bottle Capping Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

The Automatic Single Head Bottle Screw Capping Machine offers a compact, reliable solution for consistent, tamper‑evident screw capping. Its tough stainless‑steel build and precise torque control cut rejects and protect your product. With tool‑free change parts, a quick‑release hopper and smart interlocks, you get minimal downtime and fast format shifts. Add it into your production line for a hassle‑free upgrade that seals every bottle perfectly, batch after batch. Operators benefit from intuitive controls and a low‑maintenance design that meets GMP standards and adapts easily to rapidly changing packaging needs.
