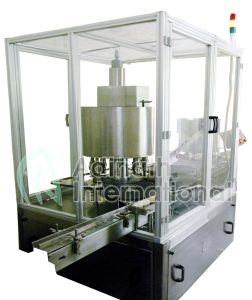

Automatic Eight Head Bottle Screw Capping Machine

The Automatic Eight Head Bottle Screw Capping Machine streamlines capping for pharmaceutical, food & beverage, cosmetics and chemical producers. It picks up empty bottles, delivers caps from a vibratory magazine and tightens them in one go using eight heads. You get tamper‑evident seals, leak‑proof closures and uniform results. Its stainless‑steel frame and sanitary design fit right into GMP‑rated lines, cutting manual work, speeding up output and helping you meet production targets without compromise.

Automatic Eight Head Bottle Screw Capping Machine Video

Durable Strength, Consistent Torque, High‑Throughput Solution

A solid SS 304 frame and SS 316L contact parts give this Automatic Eight Head Bottle Screw Capping Machine years of reliable service, even under high‑pressure wash‑down routines. Eight servo‑driven capping heads apply the same preset torque to every bottle, eliminating loose or over‑tight seals. Whether you run pilot batches or full‑scale production, the system adapts: cap sizes from 20 mm to 85 mm slip into place without fuss, and vibration‑free operation keeps everything aligned. The results are fewer rejects, smoother changeovers and the confidence that every bottle leaves the line correctly sealed.

How Does the Automatic Eight Head Bottle Screw Capping Machine Work

1. Bottle Feeding: Empty bottles arrive via the in‑feed conveyor. A star‑wheel spaces them evenly under the capping heads to start the cycle.

2. Cap Orientation: Caps tumble in a vibratory bowl and travel up a chute. Guides turn each cap right‑side‑up, ready for placement.

3. Synchronised Capping: All eight heads lower together, grip the cap threads and twist to the exact torque you set on the touchscreen.

4. Discharge: Sealed bottles are transferred to the out‑feed conveyor, directly for labelling or packing with no intermediate.

Key Features

• Stainless Steel Design: SS304 frame and SS316L parts provide resistance to everyday cleaning procedures.

• Eight‑Head Capping: Cap eight bottles simultaneously — for increased productivity and less waste.

• Uniform Torque Control: All heads apply equal pressure, ensuring a quality seal on all caps.

• Quick Changeover: Changeover between bottle sizes in minutes with tool‑less guides and height adjustments.

• High Speed: Can speed up to 200 bottles per minute for high demand during busy production requests.

• No Vibration Base: Double arm offers increased stability even at high workloads.

• Safety Guards: Interlocked see‐through shields protect operators when the machine is in use.

• Digital recipe storage capability: Save & recall up to 20 torque & speed recipes for frequent repetitive assembly with the same torque and speed requirements.

• Continuous Monitoring: Torque, speed and error alarms appear on the HMI to provide real feedback.

• Wide‑Open Easy Clean Maintenance: Access panels and common components keep service time and costs low.

Technical Specification of Bottle Screw Capping Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

The Automatic Eight Head Bottle Screw Capping Machine gives you a reliable, high‑speed capping solution with minimal setup and fuss. Its stainless‑steel build and sanitary design handle the toughest cleaning cycles. Eight heads work together to apply even torque, eliminating loose or over‑tight caps. Quick‑change guides and digital recipe recall speed changeovers, while safety interlocks keep operators protected. Whether you’re scaling up or running formula variations, this machine scales with your needs, reduces downtime and ensures every bottle is perfectly sealed before it leaves the line.
